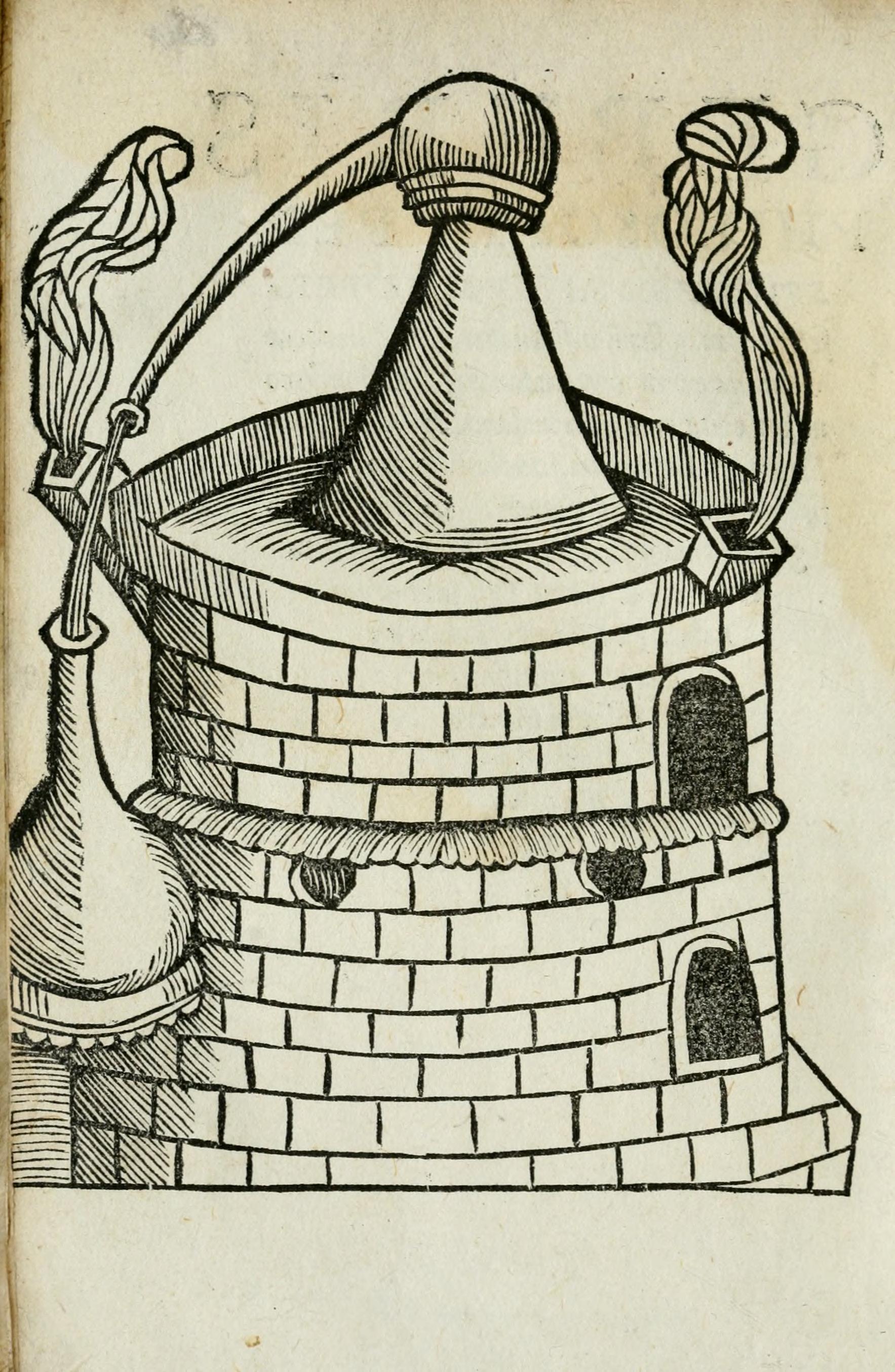

ILLUSTRATION OF THE DISTILLATORY APPARATUS

This detailed illustration provides a visual guide to the primary tools of the alchemist’s workshop. At the center is a large, circular brick furnace, designed to provide the steady, controlled heat necessary for the "Mastery."

The process shown here is Distillation The fundamental chemical process of heating a liquid to create vapor, then cooling that vapor to collect it in a purified liquid form., utilizing the following components:

• The Furnace: Built with arched openings at the base for air circulation and fuel management. Two rectangular vents at the top allow smoke and excess heat to escape.
• The Alembic original: "alambicus"; the rounded or conical cap placed over the heating vessel to catch rising vapors.: The vessel resting directly on the heat source.
• The Delivery Tube: A long, curved neck extending from the alembic, designed to allow vapors to cool as they travel away from the furnace.
• The Cucurbit original: "cucurbita"; a receiving vessel named for its gourd-like shape. In this illustration, it sits to the left, collecting the "spirit" or essence of the distilled substance.: The vessel at the end of the tube where the final product is gathered.

This apparatus was the "engine" of the alchemical laboratory, used to purify substances and search for the hidden essences of metals and minerals.
