Technical Study of a Winding Mechanism

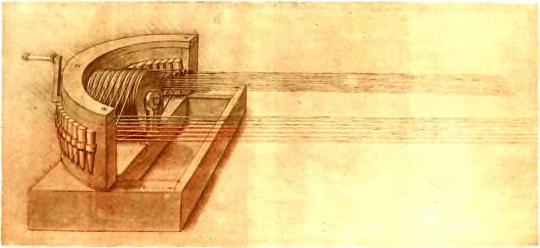

This illustration demonstrates the application of the "perpetual screw" principles discussed previously. The hand crank on the left allows a single operator to exert significant force on the central drum, which would be necessary for high-tension tasks like tuning a large stringed instrument or operating a small crane.

Mechanism Description

The crank on the left side initiates the motion, turning the internal shaft. This shaft acts as a perpetual screw: a worm gear mechanism to rotate the central drum with great mechanical advantage. The strings or cables are wound around this drum, ensuring that the tension is distributed evenly across the horizontal plane.

Frame and Dampers

The curved wooden frame situated above the base contains a series of vertical elements. These appear to be dampers or guides intended to stabilize the strings as they are drawn toward the drum. By using the rectangular base as a solid foundation, the machine can withstand the lateral forces exerted by the weights or the tension of the strings without shifting.

The use of cross-hatching in the drawing indicates a sophisticated understanding of light and shadow, typical of Renaissance engineering treatises. This level of detail suggests the machine was intended for construction rather than being a mere theoretical sketch.
